Titanium in Aerospace Industry Solutions

Titanium in Aerospace Applications

Titanium is essential in the aerospace industry due to its excellent strength-to-weight ratio, corrosion resistance, and high-temperature stability. It is widely used in aircraft, spacecraft, and critical structural components.

Titanium is applied in airframes, engines, hydraulic systems, and fuel pipelines, covering almost all key aerospace structures.

Supplier Capability

RuiPros supplies high-quality titanium products including plates, rods, tubes, and aerospace-grade materials, supporting the aerospace industry with reliable performance and custom solutions.

Aerospace Titanium Plate

Aerospace titanium plates are strong, lightweight, and corrosion-resistant materials, widely used in aircraft and aerospace components.

They offer excellent strength-to-weight ratio and heat resistance, making them ideal for commercial aircraft, helicopters, and high-performance aerospace structures.

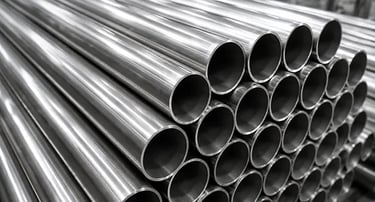

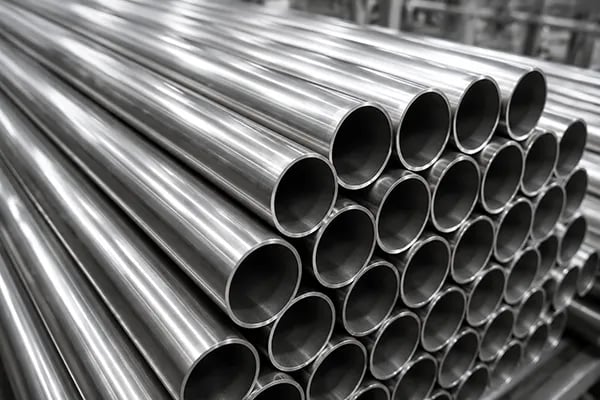

Aerospace Titanium Tube

OD: 0.16” – 8”
Wall Thickness: 0.02” – 0.4”
Length: 39” – 236” or customized

Surface Treatment

Anodizing / Pickling / Polishing / Brushing

Features

High strength
Corrosion resistance
High temperature resistance
Lightweight

Applications

Aircraft hydraulic system
Fuel line
Exhaust system

📌 Specifications

AMS-4941 / AMS-4942 / AMS-4943 / AMS-4944 / AMS-4945
BMS-7-21 / DMS-1872 / DMS-1874 / DMS-1898 / DMS-2241
B50TF35 / PWA-1260

Grade 1 titanium tube Grade 2 titanium tube

Grade 3 titanium tube Grade 4 titanium tube

3AL-2.5V titanium tube 6AL-4V titanium tube

Get a Quote

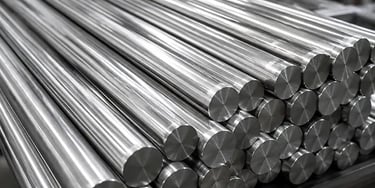

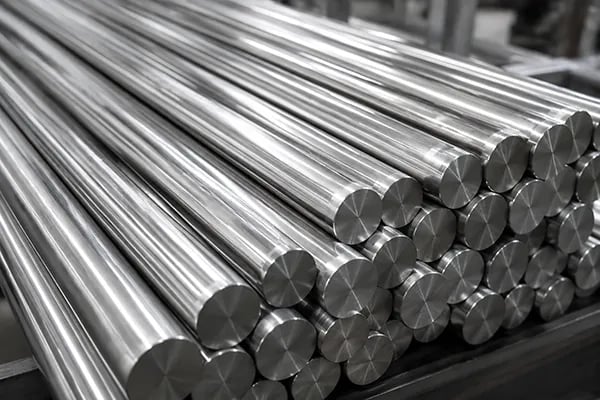

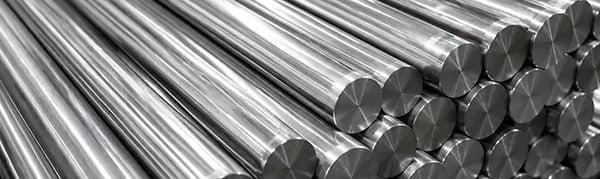

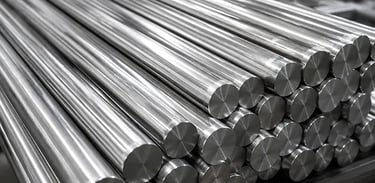

Aerospace Titanium Bar

Diameter: 0.125” – 8”
Length: 12” – 236” or customized

Surface Treatment

Anodizing / Pickling / Polishing / Brushing

Features

High strength
Corrosion resistance
High temperature resistance

Applications

Aircraft structural parts
Fasteners
Engine shafts

📌 Specifications

AMS-4928 / AMS-4930 / AMS-4965 / AMS-4967
MIL-T-9047 / AMS-T-9047 / ASTM F367 / AMS-4978 / ASTM B348

Grade 1 titanium bar Grade 2 titanium bar

Grade 3 titanium bar Grade 4 titanium bar

6AL-4V(ELI) titanium bar 5AL-2.55N titanium bar

6AL-6V-2SN titanium bar 6AL-2SN-4ZR-2MO titanium bar

8AL-IMO-IV titanium bar

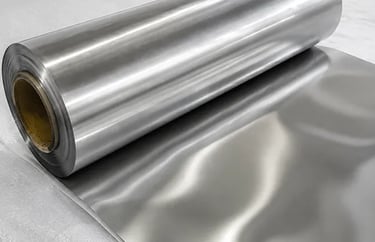

✈️ Aerospace Titanium Foil

Grade 1 Titanium Foil

Soft, ductile, and highly corrosion-resistant, ideal for lightweight aerospace designs.
Used in tank linings, corrosion barriers, heat exchangers, and protective layers.

Grade 2 Titanium Foil

Balanced strength and ductility with excellent corrosion resistance.
Used in aerospace hydraulic systems, fuel tank linings, conduits, and protective covers.

Grade 4 Titanium Foil

Highest strength among commercially pure titanium grades with good corrosion resistance.
Used in high-stress aerospace components, structural parts, and protective housings.

Grade 9 Titanium Foil (Ti-3Al-2.5V)

Titanium alloy with aluminum and vanadium, offering higher strength and corrosion resistance.
Used in hydraulic lines, fuel pipes, and lightweight aerospace components.

Beta 21S Titanium Foil

Ultra-high-strength alloy with excellent heat resistance, creep resistance, and machinability.
Used in engine components, exhaust systems, and high-temperature aerospace structures.

Ti-15-3-3-3 Titanium Foil

Ultra-high-strength β alloy with low density and excellent fatigue resistance.
Used in lightweight structures, thermal barriers, and high-performance aerospace frames.

Get a Quote

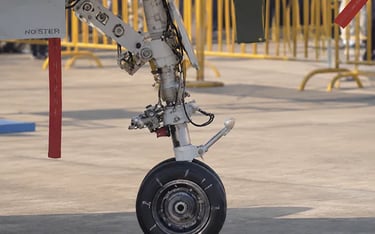

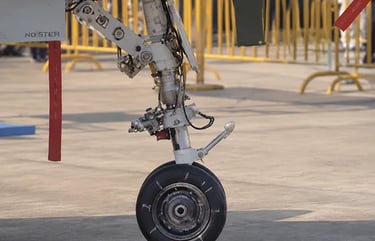

Landing Gear System

Landing gear systems must withstand extreme impact and fatigue loads while maintaining low weight. Titanium alloys provide an ideal solution for these demanding aerospace conditions.

Applications

Support structures – High-strength alloys such as Ti-10V-2Fe-3Al are used in key landing gear components, improving durability and impact resistance
Fasteners & bearings – Titanium bolts and bearings withstand repeated takeoff and landing cycles, reducing maintenance requirements

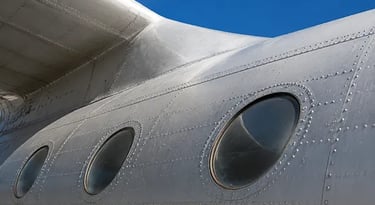

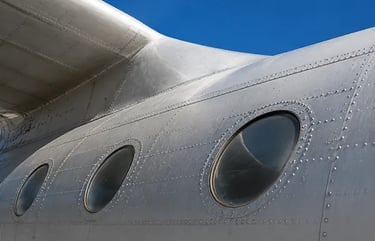

Aerospace Titanium Fasteners

Titanium alloy fasteners are widely used in aerospace applications due to their high strength, lightweight properties, and excellent corrosion resistance, making them ideal for structural connections.

Applications

Bolts & nuts – Ti-6Al-4V fasteners reduce aircraft weight while maintaining structural integrity
Rivets – Suitable for high-stress and high-corrosion environments such as fuel tanks and outer skins

Get a Quote

✈️ Why Choose RuiPros as Your Aerospace Titanium Supplier?

📦 Extensive Stock

RuiPros offers a wide range of titanium products including bars, tubes, plates, and standard sizes, ensuring fast delivery for common aerospace materials.
Custom sizes, large forgings, and non-standard parts are also available upon request.
